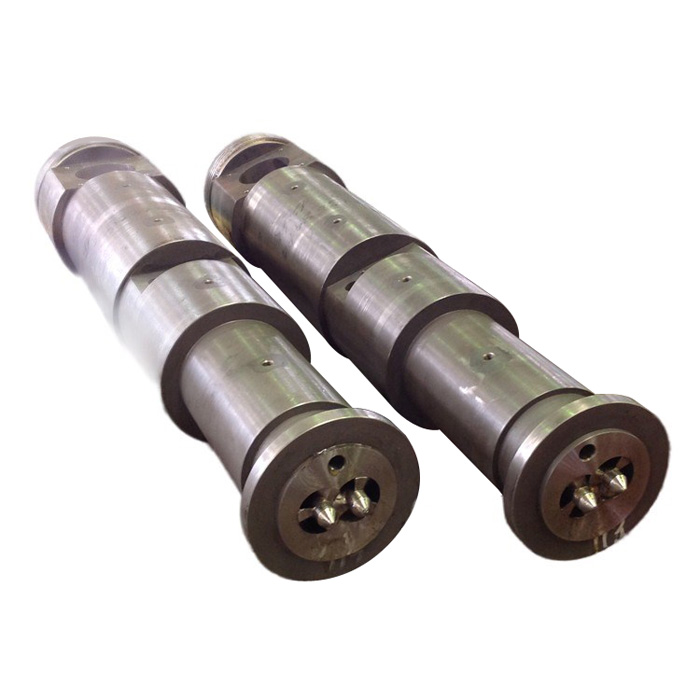

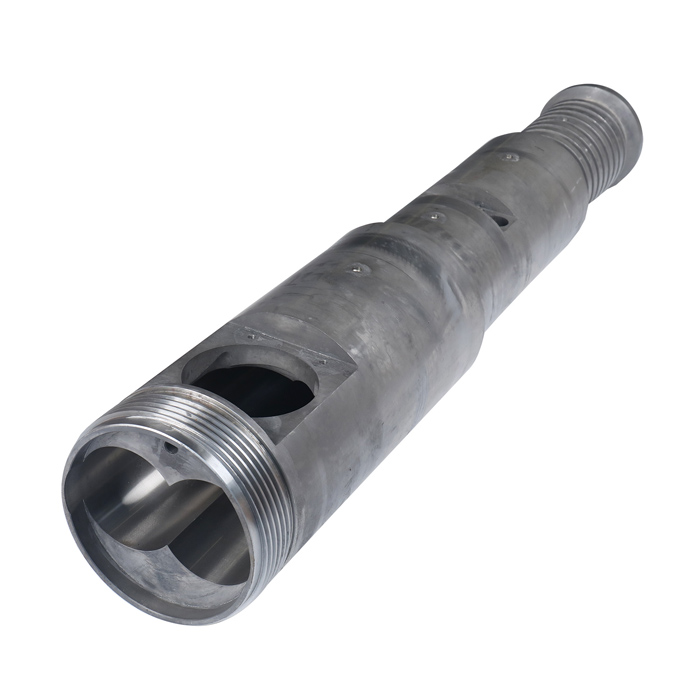

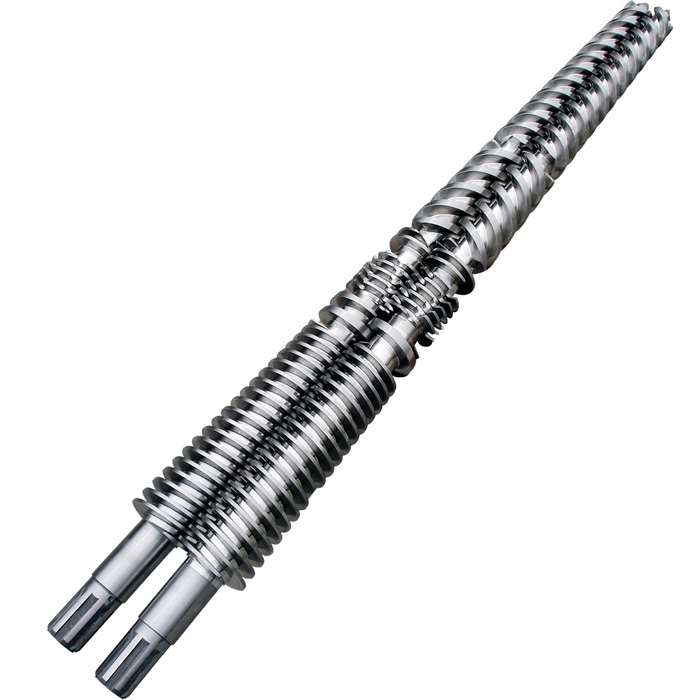

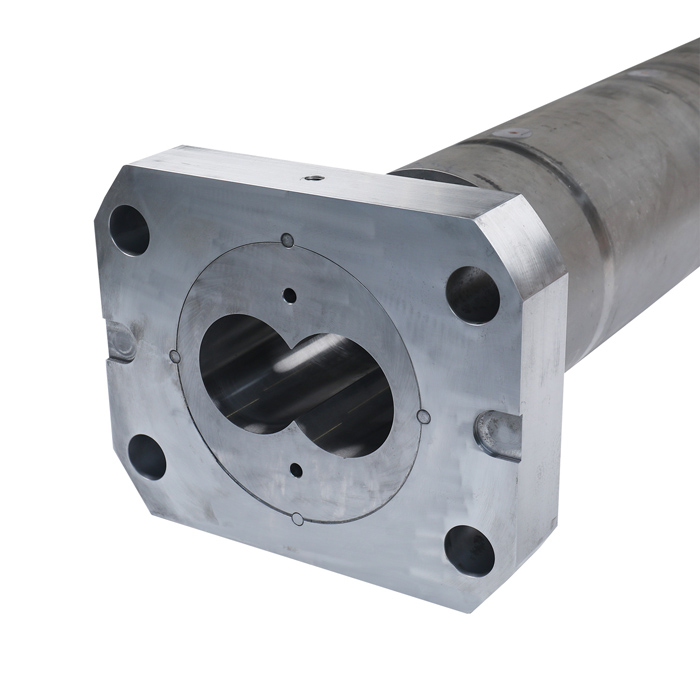

Plastic Panel Extruder Twin Screw Barrel
  • Plastic Panel Extruder Twin Screw BarrelPlastic Panel Extruder Twin Screw Barrel
  • Plastic Panel Extruder Twin Screw BarrelPlastic Panel Extruder Twin Screw Barrel
  • Plastic Panel Extruder Twin Screw BarrelPlastic Panel Extruder Twin Screw Barrel
  • Plastic Panel Extruder Twin Screw BarrelPlastic Panel Extruder Twin Screw Barrel

Plastic Panel Extruder Twin Screw Barrel

Plastic panels are largely used in our daily life everywhere, EJS can’t fall behind in this big job. Each year, thousands of Plastic panel extruder twin screw barrels are made at our workshops since 1992.

Send Inquiry

Product Description

Plastic panel extruder twin screw barrel

We do the best to make about every hard work to be excellent and ideal.

Factory China High Quality Plastic Panel Extruder Twin Screw Barrel, never ignores the packaging to avoid any possible damage during transportation.
With nearly 30 years' experience in business, we are confident in superior service, quality and delivery. We warmly welcome customers from all over the world to cooperate with our company for the better future!


Plastic panels are largely used in our daily life everywhere, EJS can’t fall behind in this big job. Each year, thousands of Plastic panel extruder twin screw barrels are made at our workshops since 1992.


E.J.S  uses high quality steel including 1.8519(31CrMoV9) to produce screws and barrels for customers globally to ensure the quality of screws and barrels, because raw material is the core and footstone.


Popular Materials used for Plastic panel extruder twin screw barrel

38CrMoAlA (DIN1.8509)

34CrAlNi7 (DIN1.8550)

31CrMoV9 (DIN1.8519)

40Cr (AISI 4340)

42CrMo ( AISI4140)

D2 (DIN 1.2379)

SKD 61

SKD 11


Surface Treatment of Plastic panel extruder twin screw barrel

Full body nitrided

Bimetallic alloy coating for extrusion section and then whole body nitrided

SKD61, SKD11 lining


Application of Plastic panel extruder twin screw barrel

Panel extrusion

Board extrusion

WPC panel extrusion


How long can you complete production of 5 sets of Plastic Panel extruder twin screw barrel, I really need them fast?

Usually 35 days are needed for production after drawing confirmation. If your size is standard, such as 55/110, 65/132, 80/156 twin conical screw barrel, we’re capable to shorten to 20 days when the time fits perfectly.

Haste makes waste, it’s better to leave more time to production people, because quality is the key. We will help you to save time on other areas, such as drawing preparation, logistics---each day counts!


About E.J.S.

EJS Screw Barrels is a newly created brand name for Export business with manufacturing experiences since 1992.
A screw barrel manufacturer dedicated on producing customized screw barrel and design extruder screw barrels, injection moulding screw barrels.


Bimetallic Screw Barrels

We started to make bimetallic screw barrel at a very early age, almost the same time as the first bimetallic barrel was born in China. Now we have several types for options depending on different applications

Bimetallic Barrels

Alloy Type

EJS01 Alloy

EJS02 Alloy

EJS03 Alloy

EJS04 Alloy

Alloy Components

Fe+Ni+Cr+B
(Fe:65, Ni:14, Cr8, B:3.5)

Ni+Cr+Co+B

Ni+Cr+Co+V+B

Ni+Wc+Cr+B
(Ni:50, Wc:15~35,Cr:6~8, B:2.5~3.2)

Wearing Resistance

★★★

★★

★★★

★★★★

Corrosion Resistance

★★

★★★

★★★

★★★

Alloy Thickness

2~3mm

1.5~2mm

1.5~2mm

1.5~2mm

Hardness

HRC 58-65

HRC 50-58

HRC 55-60

HRC 55-65

Temperature Range

≤400

≤450

≤450

≤600

Coefficient Thermal

RT~250℃

11.0x10-6

11.0x10-6

11.5x10-6

11.0x10-6

Expansion(/℃)

RT~400℃

11.4x10-6

11.4x10-6

12.4x10-6

12x10-6

Range of Workable Length

700mm~3000mm/piece

Base Steel Vastly Used

40Cr: 42CrMo

Mark in the list: ★★★★ Excellent; ★★★ Very Good; ★★Good


Bimetallic Screws

Suitable for

Single Screw, Twin Parallel Screw, Twin Conical Screw

Alloy Type

Ni60

CoImonoy 56

CoImonoy 83

Alloy Components

Ni+Cr+Fe+Si
(Ni:65, Cr:17, Fe:15, Si:5)

Ni+Cr+Si+Fe
(Ni: 68, Cr:18, Si:5, Fe:5)

Ni+Wc+Cr+C
(Ni:40, Wc:34, Cr:20, C:2)

Anti-Wearing Level

★★★

★★★

★★★★

Anti-Corrosion Level

★★★★

★★★★

★★★★

Alloy Thickness

1~1.5mm

1~1.5mm

1~1.5mm

Hardness

HRC 56-62

HRC 46~61

HRC 43-48

Applied Glass Fiber

Under 10%





Range of Workable Length

Any length needed

Base Steel Vastly Used

38CrMoAI(1.8509), 34CrAINi7(1.8550), 31CrMoV9(1.8519)

Mark in the list: ★★★★ Excellent; ★★★ Very Good; ★★Good



Quality Inspection

Quality is a very important step during production. For making a quality screw barrel, all tolerances should be fulfilled and all dimensions should be correct and put in records.

We provide inspection report, material certificate for every of our supplied screw barrels.


Packaging

Packaging is the last but very important step before shipping. A strong and smart packing box is also part of our quality. It is not only used to protect the screws barrels well during transportation, also provide an easy way for our customer to unpack.
