Conical Screw

Conical screw manufacturer EJS is one of the earliest producers of conical screws, and still is the TOP producer of twin conical screw barrel in our area.

Send Inquiry

Product Description

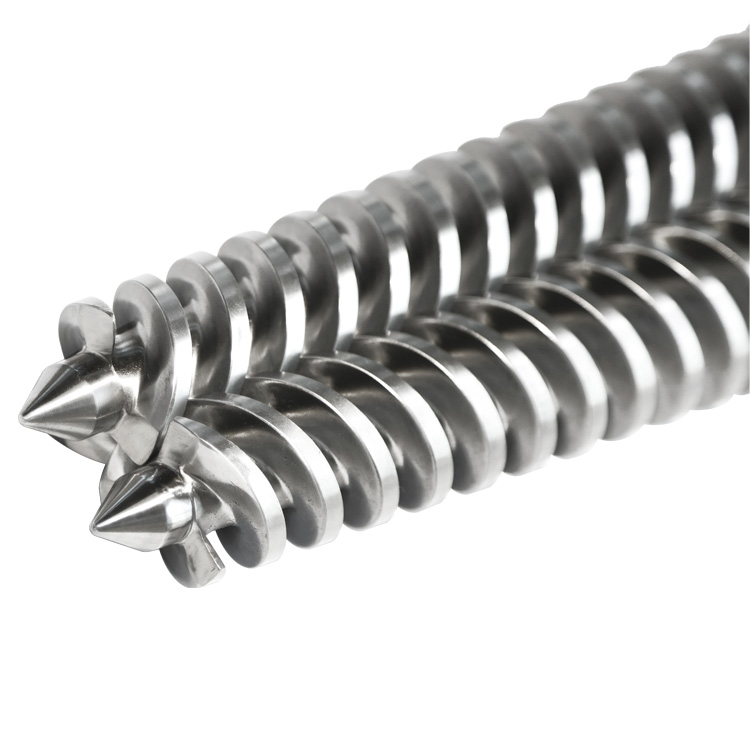

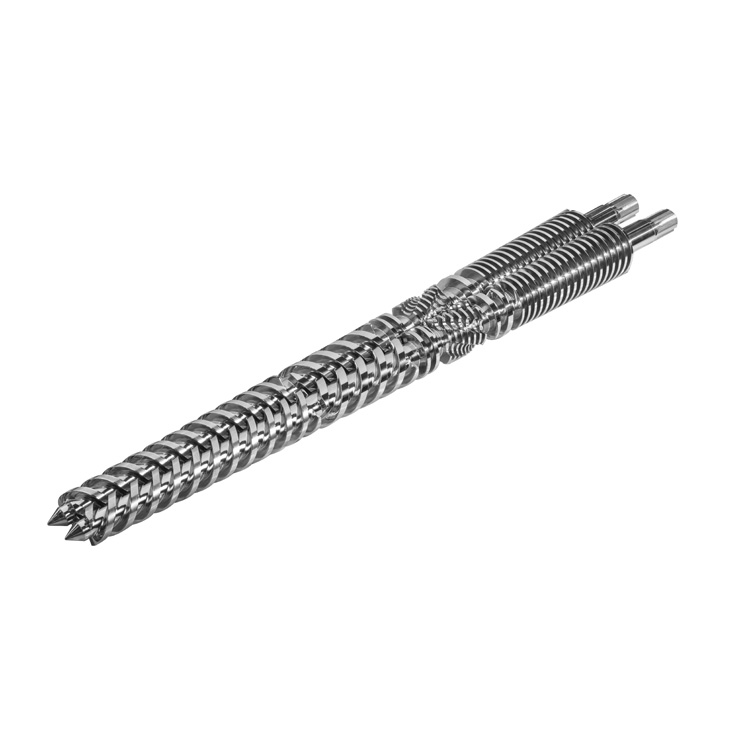

Conical Screw

Conical screw manufacturer EJS is one of the earliest producers of conical screws, and still is the TOP producer of twin conical screw barrel in our area.



Each year, EJS factory produces about 30K sets of conical screw and conical barrel for OEM machine builders as well as end users in China and abroad.



For national customers, we offer on-site measurement service as well as repair services.

For international clients, on-site measurement service is also available, in the past we sent our engineer to different countries in Europe, Middle East and Asia, to help end users to get the accurate dimensions. Some end users are world famous with dozens of production lines, Some are using Cincinnati extruders screw barrel and never tried Chinese screw barrels before.



Conical screws are the most technologically complex to produce, fortunately we have the technical know-how because our factory grows itself out of conical screw and conical barrel business 30 years ago. In all these years we gained good knowledge, we accumulated rich experiences to handle all kinds of challenges.



To conical screw, design is the heart.

Please be free to contact EJS TEAM, get your most suitable design and make best conical screws for your twin-screw extruder machines.


About E.J.S.

EJS Screw Barrels is a newly created brand name for Export business with manufacturing experiences since 1992.
A screw barrel manufacturer dedicated on producing customized screw barrel and design extruder screw barrels, injection moulding screw barrels.


Bimetallic Screw Barrels

We started to make bimetallic screw barrel at a very early age, almost the same time as the first bimetallic barrel was born in China. Now we have several types for options depending on different applications

Bimetallic Barrels

Alloy Type

EJS01 Alloy

EJS02 Alloy

EJS03 Alloy

EJS04 Alloy

Alloy Components

Fe+Ni+Cr+B
(Fe:65, Ni:14, Cr8, B:3.5)

Ni+Cr+Co+B

Ni+Cr+Co+V+B

Ni+Wc+Cr+B
(Ni:50, Wc:15~35,Cr:6~8, B:2.5~3.2)

Wearing Resistance

★★★

★★

★★★

★★★★

Corrosion Resistance

★★

★★★

★★★

★★★

Alloy Thickness

2~3mm

1.5~2mm

1.5~2mm

1.5~2mm

Hardness

HRC 58-65

HRC 50-58

HRC 55-60

HRC 55-65

Temperature Range

≤400

≤450

≤450

≤600

Coefficient Thermal

RT~250℃

11.0x10-6

11.0x10-6

11.5x10-6

11.0x10-6

Expansion(/℃)

RT~400℃

11.4x10-6

11.4x10-6

12.4x10-6

12x10-6

Range of Workable Length

700mm~3000mm/piece

Base Steel Vastly Used

40Cr: 42CrMo

Mark in the list: ★★★★ Excellent; ★★★ Very Good; ★★Good


Bimetallic Screws

Suitable for

Single Screw, Twin Parallel Screw, Twin Conical Screw

Alloy Type

Ni60

CoImonoy 56

CoImonoy 83

Alloy Components

Ni+Cr+Fe+Si
(Ni:65, Cr:17, Fe:15, Si:5)

Ni+Cr+Si+Fe
(Ni: 68, Cr:18, Si:5, Fe:5)

Ni+Wc+Cr+C
(Ni:40, Wc:34, Cr:20, C:2)

Anti-Wearing Level

★★★

★★★

★★★★

Anti-Corrosion Level

★★★★

★★★★

★★★★

Alloy Thickness

1~1.5mm

1~1.5mm

1~1.5mm

Hardness

HRC 56-62

HRC 46~61

HRC 43-48

Applied Glass Fiber

Under 10%





Range of Workable Length

Any length needed

Base Steel Vastly Used

38CrMoAI(1.8509), 34CrAINi7(1.8550), 31CrMoV9(1.8519)

Mark in the list: ★★★★ Excellent; ★★★ Very Good; ★★Good



Quality Inspection

Quality is a very important step during production. For making a quality screw barrel, all tolerances should be fulfilled and all dimensions should be correct and put in records.

We provide inspection report, material certificate for every of our supplied screw barrels.


Packaging

Packaging is the last but very important step before shipping. A strong and smart packing box is also part of our quality. It is not only used to protect the screws barrels well during transportation, also provide an easy way for our customer to unpack.
