Why the Wrong Screw Barrel Costs More Than the Right One
A screw barrel that mismatches your polymer does not fail loudly. It fails slowly. Output drifts below spec. Melt quality degrades. Black specks appear in a product that used to run clean. Six months later, the maintenance team pulls a screw that should have lasted three years.
The single screw barrel vs twin screw barrel decision drives all of it. Get it right and the machine runs for years. Get it wrong and you pay in rejects, downtime, and a replacement you did not budget for.
Two questions settle the choice. What material are you processing? And what does the melt need to become before it reaches the die? Everything else — L/D ratio, flight depth, barrel alloy — follows from those two answers.
This guide walks you through both, gives you the specification numbers most articles leave out, and shows you exactly what a screw barrel manufacturer needs from you to quote the right part.
What Is a Single Screw Barrel?
A single screw barrel holds one rotating screw inside a heated bore. The screw drags polymer forward by friction — pellets grip the barrel wall harder than they grip the screw root, so material moves toward the die instead of spinning in place.
The screw does its work across three zones.
Feed zone. Deep flights convey solid pellets from the hopper. Flight depth here stays generous — the material is still solid and needs volume.
Compression zone. Flight depth shrinks. The polymer compacts, melts against the hot barrel wall, and shears against itself. Most of the melting happens here.
Metering zone. Shallow flights pump a uniform melt at steady pressure into the die. Consistency matters more than mixing.
Key Specifications
| Parameter | Typical Range |
|---|---|
| L/D ratio | 20:1 to 36:1 (25:1 to 33:1 covers most work) |
| Bore diameter | Ø14 mm to Ø500 mm |
| Working length | Up to 10,000 mm |
| Base steel | 38CrMoAlA (1.8509), 34CrAlNi7, 42CrMo |
| Nitriding depth | 0.4 – 0.7 mm |
| Surface roughness | Ra 0.4 µm |
| Straightness | 0.015 mm |
Where Single Screws Win
Simple design. Fewer wear points. Lower cost. Easy operator training. A single screw extruder barrel running clean PE at 400 kg/h is a machine you can teach a new hire to run in a week.
Output rate is strong for homogeneous materials. The screw builds pressure well, which matters for pipe dies and sheet dies that need steady head pressure. Maintenance is straightforward: pull the screw, clean it, measure it, put it back.
Where Single Screws Fall Short
Mixing capability is limited — and this is the hard ceiling. A single screw moves polymer down a channel where shear rate peaks at the barrel wall and drops to near zero at the screw root. High-shear mixing zones cost you output and raise melt temperature, so you cannot stack many of them.
Single screws cannot break up agglomerates. They cannot disperse glass fiber evenly. They cannot devolatilize efficiently. Mixing elements like Maddock or pineapple mixers help, but they treat a symptom of the architecture, not the architecture itself.
EJS manufactures extruder screw barrels across the Ø14–500 mm range in nitrided and bimetallic construction, built to customer drawing or reverse-engineered from the machine model.
What Is a Twin Screw Barrel?
A twin screw barrel holds two intermeshing screws inside a figure-eight bore. The screws transfer material between each other repeatedly. That transfer is the whole point — it lets the machine apply intense shear to a small fraction of the melt at a time, without cooking the bulk.
The mechanism separates twin screws from single screws in a way no screw geometry can fake. Material moves by positive displacement instead of drag flow, which means the machine handles powders, flakes, and irregular feed that would starve a single screw.
Two families dominate.
Parallel Twin Screw Barrel
Two screws of constant diameter run side by side down a straight bore. Co-rotating designs dominate compounding; counter-rotating designs show up in specific profile applications.
| Parameter | Typical Range |
|---|---|
| L/D ratio | 32:1 to 52:1 (40:1 common in compounding) |
| Bore diameter | Ø20 mm to Ø250 mm |
| Screw element steel | W6Mo5Cr4V2 (high-speed steel M2), 38CrMoAlA |
| Barrel section steel | 40Cr, 38CrMoAlA, SKD61 |
| Torque | High — the shafts carry the load that mixing demands |
Parallel twins run modular. Conveying elements, kneading blocks, and mixing elements slide onto splined shafts in whatever order the process requires. Change the formulation, change the element order. That flexibility is why compounders build their lines around them.
Best for: compounding, masterbatch, glass-fiber reinforced compounds, mineral-filled polymers, reactive extrusion, devolatilization.
EJS builds parallel twin screw barrels from Ø20 to Ø250 mm, up to 10 m working length.
Conical Twin Screw Barrel
Two tapered screws sit closer together at the feed end and spread apart toward the die. The diameter shrinks from feed to discharge — 65/132, for example, means 65 mm at the die end and 132 mm at the feed end.
| Parameter | Typical Range |
|---|---|
| Size designation | 30/70 to 188/330 |
| Common sizes | 35/80, 45/90, 50/105, 55/110, 65/132, 80/143, 92/188, 110/220 |
| Rotation | Counter-rotating |
| Screw speed | Low — gentle on heat-sensitive polymers |
The taper does real work. Large flights at the feed end grab powder easily — critical for PVC dry blend, which single screws struggle to feed. As the diameter narrows toward the die, the material compacts and pressure builds without the high shear a parallel twin would generate.
That gentleness is the reason rigid PVC belongs on a conical twin. PVC releases hydrogen chloride when it overheats. Shear generates heat. A conical twin turns slower, shears less, and gets the material to the die before the stabilizer package runs out.
Best for: rigid PVC pipe, PVC profile and window frames, WPC (wood-plastic composite), PVC sheet.
EJS produces conical twin screw barrels across the 30/70 to 188/330 range, and holds 55/110 and 65/132 as semi-finished stock for faster delivery.
Head-to-Head Comparison Table
| Feature | Single Screw Barrel | Parallel Twin Screw | Conical Twin Screw |
|---|---|---|---|
| Number of screws | 1 | 2 | 2 (tapered) |
| Screw rotation | Single direction | Co- or counter-rotating | Counter-rotating |
| Typical L/D ratio | 20:1 – 36:1 | 32:1 – 52:1 | Fixed by taper geometry |
| Mixing capability | Limited | Excellent (dispersive + distributive) | Moderate, gentle |
| Shear force | Moderate, uncontrolled | High, precisely tunable | Low, deliberately |
| Feed form | Pellets | Pellets, powder, flake, fiber | Powder and dry blend |
| Best materials | PE, PP, PS, ABS, HDPE | Filled compounds, masterbatch, GF nylon | Rigid PVC, WPC |
| Output rate | High for homogeneous melt | High, with mixing work included | Moderate |
| Maintenance complexity | Low | High (modular elements) | Moderate |
| Relative barrel cost | 1.0× | 3–5× | 2–4× |
| Typical applications | Pipe, film, sheet, cable | Compounding, masterbatch | PVC pipe, profile, WPC |
Which Applications Need a Single Screw Barrel?
A single screw barrel earns its place when the material arrives ready. The polymer is already compounded. The pellets are uniform. Your job is to melt them cleanly and push them through a die at steady pressure.
Paying for twin screw mixing capability you never use is the most common overspend in extrusion procurement.
| Application | Recommended Screw Type | Why |
|---|---|---|
| Pipe extrusion (PE, PP, HDPE) | Single screw | Pre-compounded pellets; output consistency beats mixing |
| Film blowing (LDPE, LLDPE, HDPE) | Single screw | Uniform melt at stable pressure; no mixing demand |
| Sheet extrusion (ABS, PS, PP) | Single screw | Standard amorphous processing; pressure-building matters |
| Cable sheathing | Single screw | Compound arrives ready; dimensional control is the priority |
| Blow molding | Single screw | Melt quality and shot consistency, not compounding |
| Injection molding | Single screw (reciprocating) | Separate category — the screw also acts as a plunger |
Injection screws deserve a note. They rotate and slide, so they carry a screw-tip assembly — tip, non-return valve, check ring — that extrusion screws never have. The barrel is a single-screw bore, but the hardware is its own discipline.
Which Applications Require a Twin Screw Barrel?
A twin screw barrel becomes necessary when the melt must be changed, not merely melted.
Rigid PVC pipe and profile. PVC degrades exothermically and releases HCl. A single screw generates uncontrolled shear heat that accelerates that reaction. Rigid PVC arrives as dry powder blend, which a single screw feeds badly. A conical twin screw barrel feeds powder, compacts it gently, and delivers it at low shear. Running rigid PVC on a single screw produces degradation, black specks, and poor surface finish.
Compounding and masterbatch. Dispersive mixing breaks agglomerates apart. A pigment agglomerate that survives the screw shows up as a streak in your customer's part. Kneading blocks in a parallel twin apply the shear needed to break those agglomerates; a single screw channel cannot.
Glass fiber, calcium carbonate, and talc-filled compounds. Filler must distribute evenly and — for glass fiber — retain fiber length. Parallel twins let you place mixing intensity precisely along the screw, with side-feeders that introduce fiber downstream of the melting zone to protect fiber length.
Reactive extrusion. Grafting, chain extension, and cross-linking need controlled residence time and intense mixing. Twin screws deliver both because element order sets the residence-time distribution.
Devolatilization. Removing moisture, solvent, or monomer needs a vented section where melt spreads thin under vacuum. Twin screws create that surface renewal; single screws barely manage it.
WPC (wood-plastic composite). Wood flour is abrasive, heat-sensitive, and feeds like a powder. Conical twins handle the feeding and keep shear low enough to avoid scorching the wood.
Material Guide — What Polymer Are You Running?
| Polymer | Recommended Screw Type | Reason |
|---|---|---|
| PVC (rigid / uPVC) | Conical twin | Heat-sensitive; powder feed; needs gentle shear |
| PVC (flexible) | Conical or parallel twin | Plasticizer content lowers shear sensitivity |
| PE / PP / HDPE | Single screw | Homogeneous melt, straightforward processing |
| ABS / PS / PC | Single screw | Standard amorphous processing |
| Glass-filled nylon | Parallel twin | High mixing demand; fiber-length control |
| Masterbatch / concentrate | Parallel twin | Dispersive mixing is the whole product |
| CaCO₃-filled polyolefin | Parallel twin | Filler dispersion; abrasion resistance required |
| Rubber compounds | Single screw (rubber geometry) | Pin barrel and cold-feed design, own category |
| WPC | Conical twin | Abrasive, heat-sensitive, powder-like feed |
| PET (bottle-to-bottle) | Twin (vented) | Devolatilization for moisture and IV control |
| PET (sheet, dried) | Single screw | Pre-dried pellets need no venting |
Screw Barrel Materials — Nitrided or Bimetallic?
The screw type answers how you process. The barrel material answers how long the hardware survives. Most comparison articles skip this entirely — and it is where a large share of premature failures originate.
Nitrided Construction
Nitriding diffuses nitrogen into the surface of the base steel, forming a hard case 0.4 to 0.7 mm deep. 38CrMoAlA is the standard base steel across Asia; 34CrAlNi7 nitrides deeper and harder for the same treatment.
Choose nitrided when: you run clean, unfilled resins — natural PP, PE, PS, ABS. The case handles the wear, and bimetallic would buy protection you never call on.
The limit: the hard case is thin. Abrasive fillers cut through it, and beneath it sits softer core steel that erodes fast.

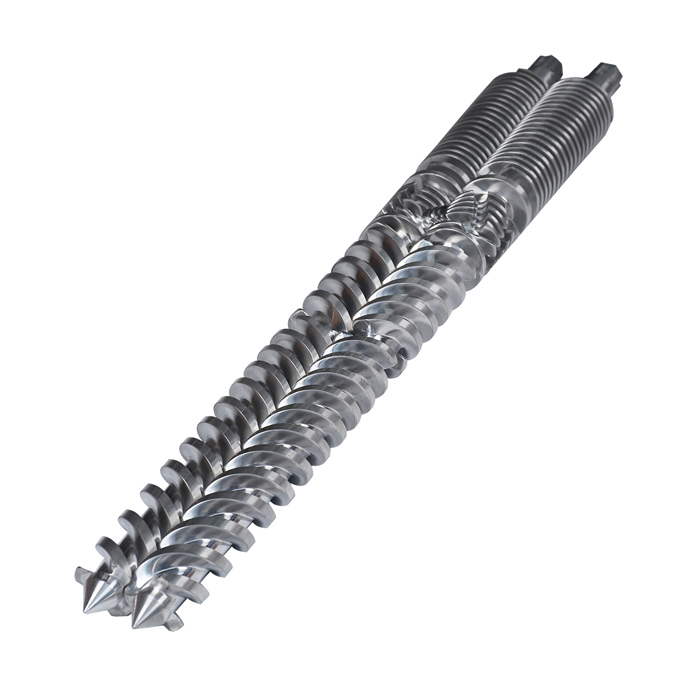

Bimetallic Construction
Bimetallic adds a separate wear-resistant alloy layer. On the screw, EJS applies it by PTA (plasma transferred arc) welding — 1.0 to 1.5 mm of Ni60, Colmonoy 56, or Colmonoy 83. On the barrel, alloy goes in by centrifugal casting — 2.0 to 3.0 mm of the EJS01 through EJS04 grades.
| Alloy | Composition | Anti-Wear | Anti-Corrosion | Hardness |
|---|---|---|---|---|
| Ni60 (screw) | Ni+Cr+Fe+Si | ★★★ | ★★★★ | HRC 56–62 |
| Colmonoy 56 (screw) | Ni+Cr+Si+Fe | ★★★ | ★★★★ | HRC 53–58 |
| Colmonoy 83 (screw) | Ni+Wc+Cr+C | ★★★★ | ★★★★ | HRC 50–55 |
| EJS01 (barrel) | Fe+Ni+Cr+B | ★★★ | ★★ | HRC 58–62 |
| EJS02 (barrel) | Ni+Cr+Co+B | ★★ | ★★★ | HRC 50–58 |
| EJS03 (barrel) | Ni+Cr+Co+V+B | ★★★ | ★★★ | HRC 55–60 |
| EJS04 (barrel) | Ni+Wc+Cr+B | ★★★★ | ★★★ | HRC 55–60 |
Upgrade to bimetallic when you process:
- Glass fiber or mineral fillers — abrasion destroys a nitride case
- Flame retardants — many packages are chemically aggressive
- Rigid PVC — HCl attacks the bore; EJS02 or EJS03 resist it
- Recycled or post-consumer feed — grit and metal fines behave like sandpaper
- Any line where uptime makes service life the dominant economic factor
Note the counterintuitive detail: Colmonoy 83 shows lower Rockwell hardness than Ni60, yet carries the top anti-wear rating. Tungsten carbide particles embedded in the matrix do the work against abrasive fillers — bulk hardness is not the same property as abrasion resistance.
EJS produces bimetallic screw barrels in all seven alloy grades, for single screw, parallel twin, and conical twin geometries alike.
Cost Comparison — Single vs Twin Screw Barrel
Screw barrels carry no list price. They are close to 100% custom parts, and the cost reflects alloy grade, base steel, surface treatment, L/D ratio, and length. Any supplier quoting from a catalog without seeing a drawing is guessing.
What holds across suppliers is the relative cost structure.
| Barrel Type | Relative Cost Index | Driver |
|---|---|---|
| Single screw barrel | 1.0× | One screw, one bore, simple geometry |
| Conical twin screw barrel | 2–4× | Two tapered screws, complex bore machining |
| Parallel twin screw barrel | 3–5× | Two screws, modular elements, splined shafts, sectional barrels |
Twin screw barrels cost more because the machining is harder and the parts count is higher. That premium is worth paying when the process needs mixing — and pure waste when it does not.
Two cost factors buyers underweight:
Wrong screw type is the most expensive mistake available. A single screw running rigid PVC produces rejects and degradation. Those losses exceed the barrel price difference within months.
Under-specified material costs more than over-specified. A nitrided screw on glass-filled nylon wears out in a fraction of a bimetallic screw's life. The cheaper part becomes the more expensive part on the second replacement cycle.
Chinese screw barrel manufacturers typically quote 30–50% below European equivalents for comparable metallurgy. The gap comes from labor and overhead, not from thinner alloy layers — provided you verify the specification. Ask for the alloy grade, the layer thickness, and the material certificate.
How to Choose — A Step-by-Step Decision Framework
Work through these in order. Each answer narrows the next.
- What is your primary polymer? Check the material guide table above. Rigid PVC ends the discussion immediately — conical twin, no alternative.
- Does the melt need work, or just melting? If the pellets arrive compounded and your job is to melt and shape, a single screw barrel does it. If you must disperse, react, vent, or blend, you need a twin.
- Is the material heat-sensitive? PVC, PVDC, and wood-filled compounds punish high shear. Conical twin, low speed, low shear.
- What form does the feedstock take? Powder and dry blend feed badly into single screws. Twin screws feed them by positive displacement.
- What is your target output rate? Match L/D and diameter to it. Do not size the barrel to the output you hope for in three years — you will run it starved and unstable today.
- Will you run multiple materials on this machine? Twin screws reconfigure by changing element order. Single screws do not. Flexibility has a price, but so does buying a second machine.
- Which alloy does the compound demand? Clean resin → nitrided. Filled, corrosive, or recycled → bimetallic.
The framework converges quickly. Most buyers land on single screw for standard extrusion, conical twin for PVC, parallel twin for compounding — and then spend their real decision time on the alloy, which is where service life actually lives.
How to Spec Your Quote to a Screw Barrel Manufacturer
A screw barrel factory needs this information to quote in one working day:
- Machine make and model. Screw barrels are built per drawing or per machine brand and code. The model often pins down the geometry directly.
- Screw type and configuration. Single, parallel twin, or conical twin. For twin screws, note co- or counter-rotating.
- Diameter and L/D ratio. For conical twins, the size designation (55/110, 65/132) carries both.
- Resin and filler content — honestly. "PP" and "PP with 25% talc and 15% regrind" are different wear problems and different alloy answers. This single line drives the metallurgy recommendation more than anything else you send.
- Drawing if you have one. A drawing is the fastest path to an accurate quote. Without one, send product photos plus major dimensions — diameter, length, flange details.
- New build or replacement? For a replacement, wear measurements and photos of the worn part help the factory judge whether refurbishment beats new manufacture.
Screw barrels are custom parts, so drawings matter more here than in almost any other purchase. Send them, and a serious manufacturer comes back with a quotation in a working day.
Request a technical review or quote from EJS — the factory has built screws and barrels at Jintang Island since 1992, across single screw, parallel twin, and conical twin geometries.
Common Mistakes When Choosing Screw Barrel Type
- Running rigid PVC on a single screw barrel. The most costly and most common error. Degradation, black specks, poor surface finish. Rigid PVC needs a conical twin. Full stop.
- Using a parallel twin where a conical twin belongs. Parallel twins generate more shear than rigid PVC profiles tolerate. Higher spec is not the same as correct spec.
- Under-specifying the alloy. Ordering nitrided when the compound calls for bimetallic. The saving evaporates on the first premature replacement.
- Choosing the wrong L/D ratio. Too short and the polymer does not melt fully — you get unmelt and pressure spikes. Too long and heat builds up, degrading heat-sensitive resins.
- Buying on price alone. Ask for the material certificate. Ask for the alloy layer thickness. A quote 40% under every other quote for the same drawing means something got cut — usually alloy thickness, sometimes alloy substitution.
- Skipping the wear inspection at replacement. A new screw inside a worn barrel runs at enlarged clearance from day one. Measure both. Replace or refurbish them as a matched pair.
FAQ — Single Screw vs Twin Screw Barrel
Can I use a single screw barrel for PVC pipe extrusion?
No — not for rigid PVC. Rigid PVC arrives as a dry powder blend that a single screw feeds poorly, and it degrades under the shear heat a single screw generates uncontrollably. The polymer releases hydrogen chloride as it breaks down, which corrodes the bore and shows up as black specks and poor surface finish in the product. A conical twin screw barrel feeds the powder reliably, runs at lower RPM, and applies far less shear. Flexible PVC with high plasticizer content is more forgiving, but rigid PVC pipe and profile belong on a conical twin.
What is the main difference between a conical and parallel twin screw barrel?
Conical twins taper; parallel twins do not. A conical twin screw barrel has two tapered screws, wide at the feed end and narrow at the die — designated by two numbers, like 65/132. The large feed end grabs powder easily and the taper compacts material with low shear, which suits heat-sensitive rigid PVC and WPC. A parallel twin screw barrel keeps constant diameter down its length, runs modular screw elements on splined shafts, and delivers far more mixing intensity. Parallel twins handle compounding and masterbatch; conical twins handle PVC.
Is a twin screw barrel always better than a single screw barrel?
No. A twin screw barrel is not always better — it is better at mixing. For melting pre-compounded pellets and pumping them at steady pressure, a single screw barrel matches or beats a twin at a fraction of the cost and complexity. HDPE pipe lines, LDPE film lines, and ABS sheet lines run on single screws worldwide because their material arrives ready and their process needs no compounding. Buying a twin screw barrel for that work means paying 3–5× for capability that sits idle.
How much more does a twin screw barrel cost compared to a single screw?
Expect 2–4× for a conical twin and 3–5× for a parallel twin, relative to a comparable single screw barrel. The premium comes from harder machining, higher parts count, and modular elements. Screw barrels carry no list price — the actual number depends on alloy grade, base steel, surface treatment, L/D ratio, and length, so any manufacturer quotes from your drawing rather than a catalog. Chinese manufacturers typically price 30–50% below European equivalents for equivalent metallurgy.
Can EJS make both single screw and twin screw barrels?
Yes. EJS manufactures extruder screw barrels (single screw type, Ø14–500 mm), parallel twin screw barrels (Ø20–250 mm), and conical twin screw barrels (30/70 to 188/330) — the full range of extrusion geometries. The factory also produces injection molding screw barrels, rubber screw barrels, screw elements, and barrel sections, in nitrided and bimetallic construction, per drawing or reverse-engineered from the machine model.
What L/D ratio should I choose for my single screw extruder?
Match L/D to the melting demand of your resin: 20:1 to 25:1 for easy-melting, heat-sensitive materials; 25:1 to 33:1 for general-purpose work; 33:1 to 36:1 when you need extra melting length or a vented section. Shorter L/D limits residence time and protects heat-sensitive polymers. Longer L/D gives the melting zone room to finish its job — necessary for high-viscosity resins or high output rates — but builds more heat, which punishes materials that degrade.
How do I know if my screw barrel needs to be replaced?
Falling output at the same screw speed is the first sign. Watch also for rising melt temperature, higher drive current for the same throughput, and quality drift the die cannot correct. Confirm with measurement: pull the screw, measure flight OD with a micrometer and bore ID with a bore gauge at several positions, and compute radial clearance. When clearance reaches roughly twice the as-new value, the barrel goes on the replacement plan. Near three times as-new, most processors replace.
What is the lifespan of a single vs twin screw barrel?
Service life depends on the compound far more than on the screw type. A nitrided single screw running clean PE can hold spec for years; the same screw on 30% glass-filled nylon may need replacement in a fraction of that time. Bimetallic construction extends life substantially on abrasive and corrosive duty. On twin screws, wear concentrates on specific elements — kneading blocks first — so replacement often means swapping worn positions rather than the whole screw. Any supplier who quotes a universal hours figure without asking about your resin is guessing.
Conclusion
The rule is short: match the barrel to what the melt needs, not to what the brochure recommends.
- Melting and conveying pre-compounded pellets? Single screw barrel. Simpler, cheaper, and equal to the job.
- Mixing, compounding, filling, venting, or reacting? Parallel twin screw barrel. Nothing else disperses agglomerates.
- Rigid PVC or WPC? Conical twin screw barrel. Non-negotiable.
Then spend your real attention on the alloy. Screw type determines whether the process works; barrel material determines how long it keeps working. Nitrided for clean resin, bimetallic for anything abrasive, corrosive, or recycled.
EJS manufactures both extruder screw barrels (single screw) and twin screw barrels — conical and parallel — for the full range of extrusion applications, in nitrided and bimetallic construction. Send your machine model, drawing, and the resin you actually run: request a technical consultation or quote.
