Hardfacing Screw
  • Hardfacing ScrewHardfacing Screw
  • Hardfacing ScrewHardfacing Screw
  • Hardfacing ScrewHardfacing Screw

Hardfacing Screw

The enemy of screw and barrel efficiency is wear. Screw wear is a result of the flow of plastic against the screw and barrel as well as metal contact between the flights and barrel.Welcome to buy Hardfacing Screw from us.

Send Inquiry

Product Description

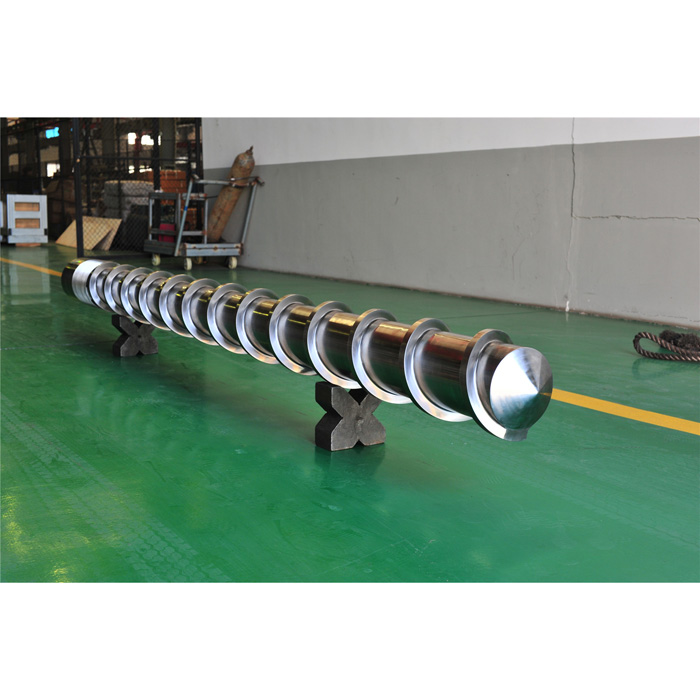

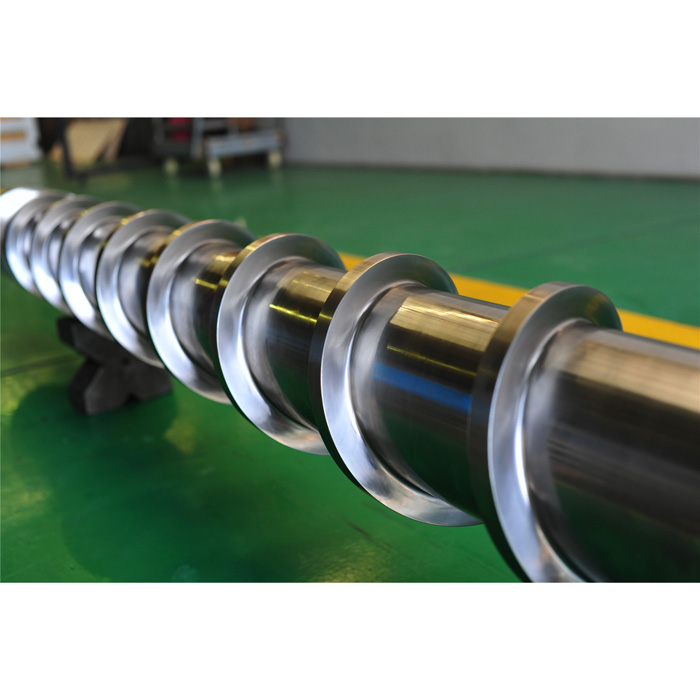

Hardfacing screw

The enemy of screw and barrel efficiency is wear. Screw wear is a result of the flow of plastic against the screw and barrel as well as metal contact between the flights and barrel.

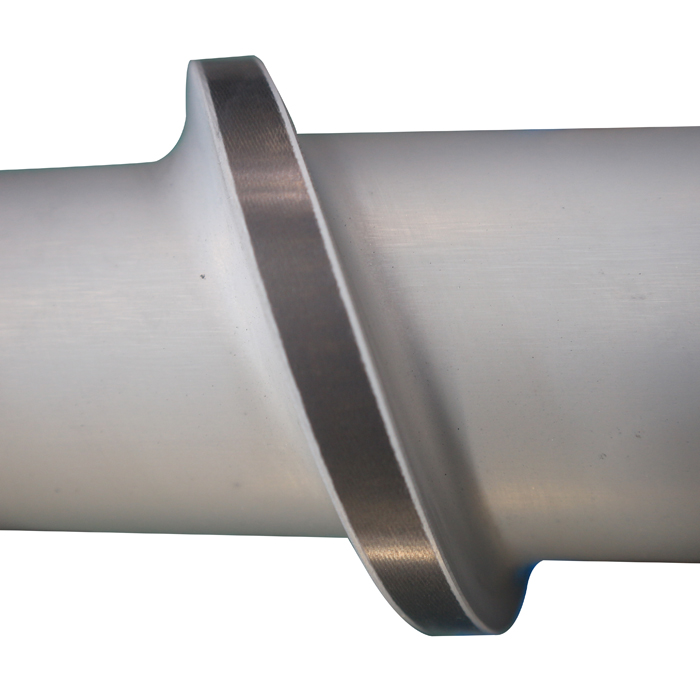

Therefore, to expand screw life, wear resistance alloys are applied over the top of the screw flights. The thickness of such alloys varies from 1.0mm to 2.5mm This method of application is called “Hard Facing”, that’s why we call screws with hard facing process “hardfacing screw”.


EJS has been producing hardfacing screws for over 15 years, especially these years more and more customers are using hardfacing screw for their longer life time.


Bore diameter available for hardfacing screw

¢16~¢500


Popular Materials used for hardfacing screw

38CrMoAlA(1.8509)

34CrAlNi7(1.8550)

31CrMoV9(1.8519)

40Cr(4340)

42CrMo(4140)

SKD11


Alloy powder of hardfacing screw

Kennametal Stellite Ni60

Colmonoy 56

Colmonoy 83

EJS01 alloy

EJS04 alloy


Application of hardfacing screw

Single screw barrel

Twin screw barrel


We received your hardfacing screws. Are you sure your people have done the inspection? Look at the crack, I think any people will see this clearly. How can we install such a screw on our machine? How fast can you get us a new screw? We need them now. Please let me know.

As a quality-oriented company, EJS tries everything to avoid cracks. However, it is not possible to completely exclude the possibility of cracks forming. The company consulted senior engineers, checked with experts, analyzed together with experienced production managers and sought advice from long-term customers in different countries. Finally EJS accepted the fact that cracks are inevitable for some alloys on big sizes, because no cracks means soft flights. There are some alloys which you cannot avoid micro cracks. They always exists.


Moreover EJS started to know that


When the cracks are intense, AND the flights always stay - it is acceptable.

When the cracks are long, AND the flights always stay - it is acceptable.

When the cracks are wide, AND the flights always stay - it is acceptable.

When the cracks are regular in one direction - it is acceptable.

If the crack causes the peal-off - it is NOT acceptable.


Using these simple questions, customers can check whether their screws are OK or not. In case of doubt, the experienced EJS staff will be happy to help.


About E.J.S.

EJS Screw Barrels is a newly created brand name for Export business with manufacturing experiences since 1992.
A screw barrel manufacturer dedicated on producing customized screw barrel and design extruder screw barrels, injection moulding screw barrels.


Bimetallic Screw Barrels

We started to make bimetallic screw barrel at a very early age, almost the same time as the first bimetallic barrel was born in China. Now we have several types for options depending on different applications

Bimetallic Barrels

Alloy Type

EJS01 Alloy

EJS02 Alloy

EJS03 Alloy

EJS04 Alloy

Alloy Components

Fe+Ni+Cr+B
(Fe:65, Ni:14, Cr8, B:3.5)

Ni+Cr+Co+B

Ni+Cr+Co+V+B

Ni+Wc+Cr+B
(Ni:50, Wc:15~35,Cr:6~8, B:2.5~3.2)

Wearing Resistance

★★★

★★

★★★

★★★★

Corrosion Resistance

★★

★★★

★★★

★★★

Alloy Thickness

2~3mm

1.5~2mm

1.5~2mm

1.5~2mm

Hardness

HRC 58-65

HRC 50-58

HRC 55-60

HRC 55-65

Temperature Range

≤400

≤450

≤450

≤600

Coefficient Thermal

RT~250℃

11.0x10-6

11.0x10-6

11.5x10-6

11.0x10-6

Expansion(/℃)

RT~400℃

11.4x10-6

11.4x10-6

12.4x10-6

12x10-6

Range of Workable Length

700mm~3000mm/piece

Base Steel Vastly Used

40Cr: 42CrMo

Mark in the list: ★★★★ Excellent; ★★★ Very Good; ★★Good


Bimetallic Screws

Suitable for

Single Screw, Twin Parallel Screw, Twin Conical Screw

Alloy Type

Ni60

CoImonoy 56

CoImonoy 83

Alloy Components

Ni+Cr+Fe+Si
(Ni:65, Cr:17, Fe:15, Si:5)

Ni+Cr+Si+Fe
(Ni: 68, Cr:18, Si:5, Fe:5)

Ni+Wc+Cr+C
(Ni:40, Wc:34, Cr:20, C:2)

Anti-Wearing Level

★★★

★★★

★★★★

Anti-Corrosion Level

★★★★

★★★★

★★★★

Alloy Thickness

1~1.5mm

1~1.5mm

1~1.5mm

Hardness

HRC 56-62

HRC 46~61

HRC 43-48

Applied Glass Fiber

Under 10%





Range of Workable Length

Any length needed

Base Steel Vastly Used

38CrMoAI(1.8509), 34CrAINi7(1.8550), 31CrMoV9(1.8519)

Mark in the list: ★★★★ Excellent; ★★★ Very Good; ★★Good



Quality Inspection

Quality is a very important step during production. For making a quality screw barrel, all tolerances should be fulfilled and all dimensions should be correct and put in records.

We provide inspection report, material certificate for every of our supplied screw barrels.


Packaging

Packaging is the last but very important step before shipping. A strong and smart packing box is also part of our quality. It is not only used to protect the screws barrels well during transportation, also provide an easy way for our customer to unpack.
